 Proudly
Designed, Built, and Supported in the USA
Soaring
Circuits is a proud sponsor of:
2013 Polecat/Soaring Circuits ALES Contest
2013 Annual Mid-Winter ALES Contest
2012 & 2013 ALES League
|
|
The
2012 Polecat/Soaring Circuits ALES
contest
in Carlisle, PA was a huge success!
With 46 pilots, the altitude limited electric
soaring (ALES)
format continues to grow. We
had
contestants from all over the US, Canada and even Mexico
competing this year. Along
with a great weekend of competitive
flying, we also had great hot lunches each day and a BBQ pig
roast right at
the field Saturday night! We'll most likely hit our limit of 60
pilots next year so sign up early and c’mon out and see why this is the
largest
electric soaring event in the US!
|
|
|
|
CAM
Competition
Altimeter
for Models
Designed for the new 200m altitude limited electric soaring (ALES) format, the CAM is small, light, and easy to install. Just plug it in
between your receiver and ESC. That's it! The CAM automatically shuts your motor down at 200 meters or after 30 seconds per the
Academy of Model Aeronautics ALES (AMA Event 631) rules. This new competition format promises to put the "soaring" back into electric sailplane contests. Even
inexpensive RTF models can compete!
The CAM has selectable cutoff altitudes of 100m, 150m and 200m, and does not require a computer or separate programming device to use. You can easily
change the cutoff right at the field. With the CAM you can make multiple climbs to cutoff without having to land. Great for
practicing! And, the CAM is designed, built and supported right here in the USA.
CAM Installation Diagrams
Now available in the standard 100m/150m/200m version, and an f3i/f3q
version for aerotowing!
Retail
Price: $49
(see dealer listing below)
Soaring
clubs, want to have your own altitude limited soaring
contests? Contact
us about our
quantity
discounts on the CAM!
|
|
|
|
|
Soaring
Circuits is the home of the RAM3
All
the
functionality of the RAM2, but about half the size and double the
memory!
|
|
|
|
|

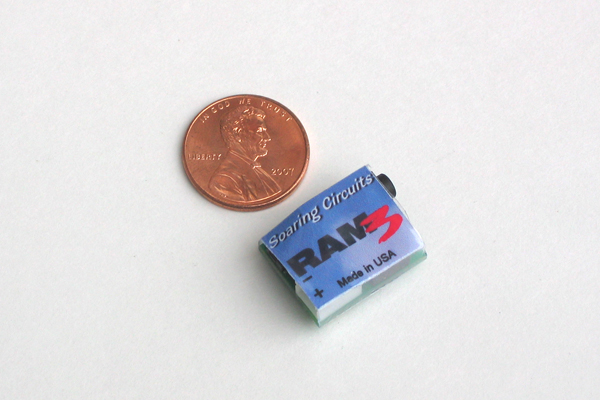

RAM3
Specifications
- Size:
3/4"
long x 5/8" wide x 3/8" high.
- Weight:
2-1/4
grams.
- Resolution:
< 1
foot.
- Sample
Rates:
1, 2, 5,
or 10 samples/second.
- Memory:
Over 18
hours at the 1 sample/second rate.
- Interface:
USB,
cable included.
- Power
Supply:
3.1 to
15 volts.
- Current
Draw:
5
milliamps.
- Operating
Temperature:
-4F to
140F (-20C to 60C)
|
|
News
Bytes
The RAM3
now comes with a
USB cable. No more
serial cables
and
USB/RS-232 adapters!
Browse
our Customer
Pictures to see the RAM3, RAM2,
and
RAM installed in various sailplanes.
Check out the Magazine
Reviews to see what
reviewers have to say about our RAM2.
|
|
|
|
|
RAM3
Features

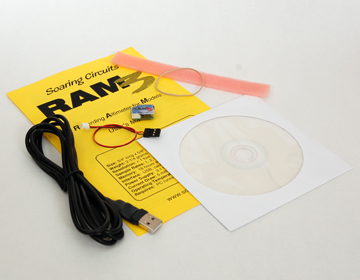

- Comes
complete with everything you need including PC interface cable,
FlightView software on CD-ROM, breathable anti-static protective foam
wrap, and instruction
booklet.
- Small,
light, and easy to use. Installs in minutes. Plugs
right
into your receiver using the detachable lead, or use a separate
battery. Wide supply voltage range lets you power the RAM3
from a
single LiPo
cell all the way up to a 12
volt battery.
- Fine
tune
winch & hand launches, motor/battery/prop combinations, camber
settings, climb & sink rates.
- Large
memory holds a whole day's worth of flying.
- 1,
2, 5,
and 10 samples/sec sampling rates.
- Requires
PC running Win XP/7/Vista with USB port.
Now
includes USB cable
and still just $79
|
|
|

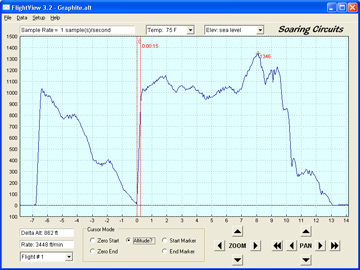

FlightView
3.3 Software
- Upload,
view, and save flight data on your PC.
- Reload
and view previously saved flights.
- Zoom
and
pan both time and altitude.
- Set
Start
and End markers with the mouse.
- Set
Altitude marker with mouse.
- Rate
of
climb/sink window.
- Delta
altitude window.
- Re-Zero
and Tilt functions to correct for barometric drift.
- Atmospheric
temperature compensation for maximum accuracy.
- Export
in
standard .CSV file format to view data in your favorite spreadsheet.
Price:
Comes with RAM3 or Free Download
|
|
|

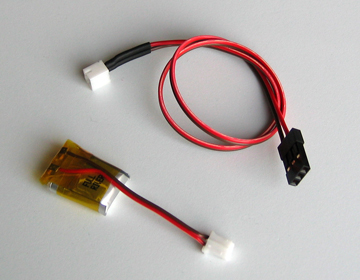

LiPo
Battery
Features
- Ready
to
plug right into your RAM3.
- Weighs
about 2 grams.
- 50mAh
capacity will power the RAM3 for 9-10 hours.
- Can
be
charged at up to a 100mA rate.
- Comes
complete with charging adapter lead.
Price:
$15
|
|

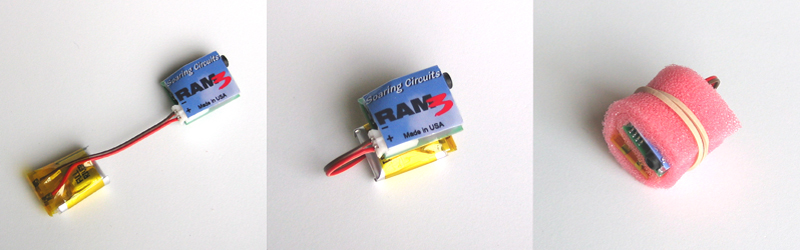

Simply
plug the LiPo
battery into the RAM3, fold
it back, give it a wrap of foam, and stick it anywhere you want in your
model. Then go fly all day! Will even fit into
tight hand
launch fuselages. The complete self contained package shown
above
weighs only about 4.5 grams!
|
|
Soaring Circuits products are now available at the following US dealers!
and now at the following Canadian dealer!
Soaring clubs, please contact us directly for quantity discounts!
International customers, please visit our US and international dealers!
European customers can now find Soaring Circuits products at Hyperflight.
Please contact Neil Stainton
at sales@hyperflight.co.uk
or
visit www.hyperflight.co.uk.
Australian
and NZ customers can now find our products at
Hyperion Australia.
Please contact Dave at sales@hyperionaustralia.com.au
or visit www.hyperionaustralia.com.au
|
|
Questions
and
comments may be sent to soaringcircuits@gmail.com
Last Update: December 17th, 2013
